"Applications with microcontroller HC11"

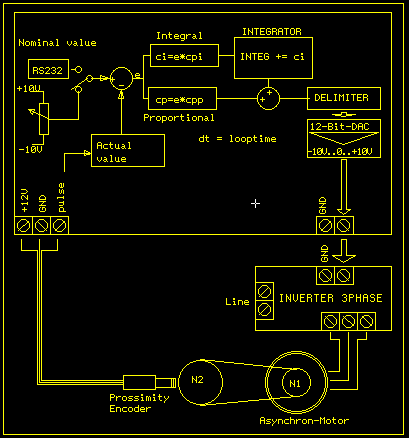

- PID-Control with 68HC11
- STEPPER CONTROL
- 68HC11 read encoder

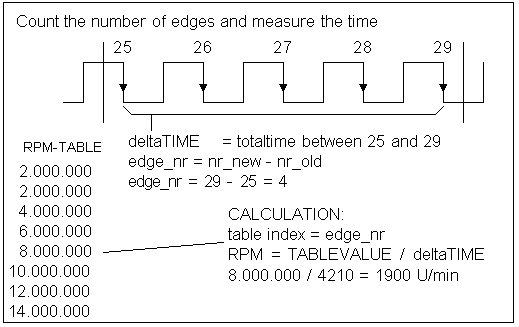

- High accuracy RPM-measurement with 68HC11

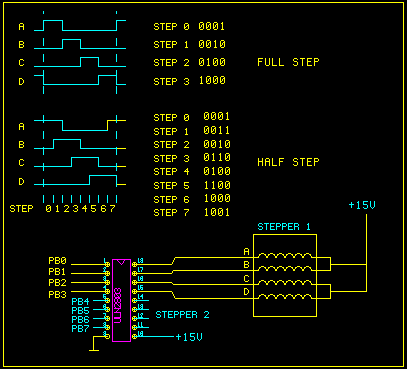

The HC11 controls the stepper
return to 68HC11 top
********* A SIMPLE STEPPER PROGRAMM ************
PORTB EQU $1004
TFLG1 EQU $1023
TOC3 EQU $101A
BIT5 EQU 00100000B
ORG $0
NR_STEPS RMB 2
PTR_PATTERN RMB 1
ORG $B600
LDS #200
clr PORTB
clr PTR_PATTERN
ldd #5000
std NR_STEPS
*********************************************************
LOOP jsr REALTIME \
jsr STEPPER_GO loop with 5 msec duration
jmp LOOP /
*---------------------------------------
REALTIME LDAA #BIT5 wait for Real Time
WAIT_REAL BITA TFLG1
BEQ WAIT_REAL
STAA TFLG1 reset TOC3
* ----------------------
LDD TOC3
ADDD #10000 5 msec
STD TOC3
rts
************************************************************
STEPPER_GO_EXIT clr PORTB
rts
STEPPER_GO ldx NR_STEPS
beq STEPPER_GO_EXIT
dex
stx NR_STEPS NR_STEPS--
* ------------------
* ldx #HALF_STEP locked
ldx #FULL_STEP unlocked
ldab PTR_PATTERN
abx
ldaa X
staa PORTB
incb
andb #00000111B count 0 to 7
stab PTR_PATTERN
rts
**************** PATTERN **************************
HALF_STEP FCB 00010000B
FCB 00110000B
FCB 00100000B
FCB 01100000B
FCB 01000000B
FCB 11000000B
FCB 10000000B
FCB 10010000B
FULL_STEP FCB 00010000B
FCB 00100000B
FCB 01000000B
FCB 10000000B
FCB 00010000B
FCB 00100000B
FCB 01000000B
FCB 10000000B
*******************************************************
The HC11 read the encoder
return to 68HC11 top
encoder.zip (ca. 2600 Bytes)
ZEROPAGE.INC
ENCODER.ASS
SERIAL.INC
The encoder is connected to PORTA PA0 and PA1
The board must be in BOOTSTRAB MODE (tested with Loggyboard)
********** listing from encoder.ass **************
$ZEROPAGE.INC
PORTA EQU $1000
PORTD EQU $1008
DDRD EQU $1009
TOC3 EQU $101A
TFLG1 EQU $1023
SPCR EQU $1028
BAUD EQU $102B
SCCR1 EQU $102C
SCCR2 EQU $102D
SCSR EQU $102E
SCDR EQU $102F
BIT5 EQU 00100000B
BIT6 EQU 01000000B
ORG $B600
LDS #200 Load Stackpointer
JSR RS_INIT RS232 INIT
LDD #0
STD ENC_COUNT set to zero
clr ERRORFLAG
JSR SET__MASK init MASK ENC_PLUS and ENC_MINUS
***********************************************************************
LOOP JSR REALTIME loop time 0,5 msec
JSR ENCODER
* ------------------
LDX PTR_SERIAL
JSR X
* ------------------
jmp LOOP
*------------------------------------------
REALTIME LDAA #BIT5 wait for Real Time Interrupt
WAIT_REAL2 BITA TFLG1
BEQ WAIT_REAL2
STAA TFLG1
* ----------------------
SetToc3 LDD TOC3
ADDD #1000 0,5 msec
STD TOC3
* --------------------
RTS
***************************************************
SET__MASK LDAA PORTA
ANDA #00000011B
STAA ENC_LAST
bra SET_MASK2
********************************************
ENCODER LDX ENC_COUNT
LDAA PORTA
ANDA #00000011B isolate input bits
CMPA ENC_LAST
BEQ ENCODER_EXIT if equal then exit
STAA ENC_LAST save value for next cycle
CMPA ENC_PLUS Increment or decrement ?
BEQ ENCODERPLUS
CMPA ENC_MINUS
BEQ ENCODERMINUS
LDAA #1 if error
STAA ERRORFLAG
ENCODER_EXIT RTS
ENCODERMINUS DEX
BRA SAVE_ENC_COUNT
ENCODERPLUS INX
SAVE_ENC_COUNT STX ENC_COUNT
SET_MASK2 LDAA ENC_LAST The mask are only the next expected value
BEQ MASK_01
CMPA #00000011B
BEQ MASK_01
MASK_10 EORA #00000010B
STAA ENC_PLUS
LDAA ENC_LAST
EORA #00000001B
STAA ENC_MINUS
RTS
MASK_01 EORA #00000001B
STAA ENC_PLUS
LDAA ENC_LAST
EORA #00000010B
STAA ENC_MINUS
RTS
*****************************************************
$SERIAL.INC
