"Applications with microcontroller 68HC11"


FLASH AMD 29F010 with 68HC11

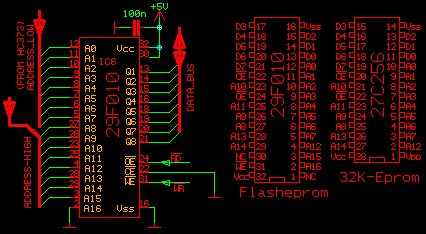

AMD29F010
load-routine in assembler programs the FLASH 29F010
The board must be in BOOTSTRAP-MODE
WRFLASH.EXE This program request a BIN-FILE to program it
in the flash AMD29F010 with 68HC11 in BOOTSTRAP-MODE

First the program below is loaded in the RAM of 68HC11 and then this program
switches the 68HC11 to Expanded-Multiplexed Mode and programs the bytes
from BIN-FILE to FLASH.
The last instruction is a indirect JUMP
from RESET-VECTOR.
The 68HC11 starts the program in FLASH.

WRFLASH1.ZIP This is the 'C' source code for the program WRFLASH.EXE
*********************************************************
*       68HC11 programs the flash AMD29F010
*	1. HC11 expect char 'W'
*       2. HC11 expect startaddress (only 1 Byte -> HighByte)
*				 lowbyte per default=0
*       3. action: clear FlashEprom
*       4. HC11 send $55
*          HC11 expect now the BINARY-FILE
*       5. HC11 send $AA for success
*       6. HC11 starts the program from RESET-VECTOR
*
*    Attention:
*      The program-code must be in the RAM of 68HC11
*********************************************************

FlashCommAdr1   EQU     $5555
FlashCommAdr2   EQU     $2AAA

CommReg1        EQU     $AA
CommReg2        EQU     $55

ResRead         EQU     $F0
AutoSel         EQU     $90
BytePro         EQU     $A0

EraseFlash      EQU     $80
EraseChip       EQU     $10

EraseSect       EQU     $30

hprio		EQU	$3C

********************************************************
*include the 68HC11 ports addresses from $1000 to $103F
$HC11DEF.H

	 ORG $0					code in RAM
START		LDS     #$FF
		LDX     #$1000
		BSET    hprio,X,#00100000B    	SWITCH the 68HC11 in the
		BCLR    hprio,X,#00010000B	EXPANDED MULTIPLEXED MODE
		BCLR    hprio,X,#01000000B

		LDAA    #00110000B              9600 BAUD
		STAA    BAUD
		clra
                staa    SCCR1
		staa    SPCR
		staa    PORTD
		LDAA    #00001100B	68HC11 SCI enabled no interrupts
		STAA    SCCR2           RECEIVER & TRANS. ENABLED
		ldaa    #00110010B
		staa    DDRD
		ldaa	SCDAT

FirstByte       ldaa    SCSR
		anda    #00100000B
		beq     FirstByte

		ldaa    SCDAT
		cmpa    #'W'
		bne     FirstByte

WRITE_FLASH     jsr     RxBytetoA      * StartAddress HighByte
		clrb                   * StartAddress LowByte = 0;
		xgdx                   * X FlashAddress

		ldaa    $FFFE
		jsr     TxBytefromA
		ldaa    $FFFF
		jsr     TxBytefromA

		jsr     ERASE_FLASH      * erase Flash now

		ldaa    $FFFE
		jsr     TxBytefromA
		ldaa    $FFFF
		jsr     TxBytefromA
*---------------------------------------
FlashNext       bsr     RxBytetoA

		cpx     #$4000
		blo     NoProgFlash
		cpx     #$B800		internal EEPROM
		bhs     ProgFlash	from 68HC11A1
		cpx     #$B600
		bhs     NoProgFlash
*-----------------------------------------
ProgFlash	bsr     FlashProgByte
*-----------------------------------------
NoProgFlash     bsr     TxBytefromA
		inx
                bne     FlashNext

		ldaa    #$AA        	* success
		bsr     TxBytefromA

		ldx	$FFFE		load the RESET-VECTOR of 68HC11
		jmp     X		and jump to the START of program
**************************************************
RESET_READ      bsr     flashOn
		ldab    #$F0
		stab    FlashCommAdr1
		ldaa	$FFFE
		rts
**********************************************
ERASE_FLASH     ldab    #CommReg1
		stab    FlashCommAdr1
		ldab    #CommReg2
		stab    FlashCommAdr2
		ldab    #$80
		stab    FlashCommAdr1

		ldab    #CommReg1
		stab    FlashCommAdr1
		ldab    #CommReg2
		stab    FlashCommAdr2
		ldab    #$10
		stab    FlashCommAdr1
*               ---------------------Data Poll
D__PollWait     ldab    $FFFE
		bpl     D__PollWait
		rts
*************************************************
RxBytetoA       ldaa    SCSR
		anda    #00100000B
		beq     RxBytetoA
		ldaa    SCDAT
		rts
*               ----------------
TxBytefromA
SEND_BYTE	ldab    SCSR
		andb    #01000000B
		beq     SEND_BYTE
		staa    SCDAT
		rts
********************************************************
DLY10           LDY     #$0B29       *10 msec delay
		bra     DLY_C
DLY1            LDY     #$011D        *1 msec delay
DLY_C           DEY                      4cycles
		BNE     DLY_C            3cycles  -> 3,5 uSec
		RTS
****************************************************
*
*  Entry:   X -> address  A -> data
*
*  Write the data in A t address in X
*  DataPoll
*		*******************************************
FlashProgByte   bsr     flashOn
		ldab    #BytePro
		stab    FlashCommAdr1
*              --------------------- now Flash is write enabled
		staa    X
*               --------------------- Data Poll
www             tab
		eorb	X
		andb	#$80
		bne	www
		rts
*		**************************************
flashOn         ldab    #CommReg1
		stab    FlashCommAdr1
		ldab    #CommReg2
		stab    FlashCommAdr2
		rts
*****************************************************
