GSM
  • Activate a input, the MR32 send one SMS


  • With a SMS you can set or reset outputs
  • Send a SMS to make a querry of inputs
  • Send a SMS to change numbers
  • Send a SMS to configure the device

  • You can use another GSM MODEM too. The commands are Hayes codes.


    INSIDE SMS CONTROL

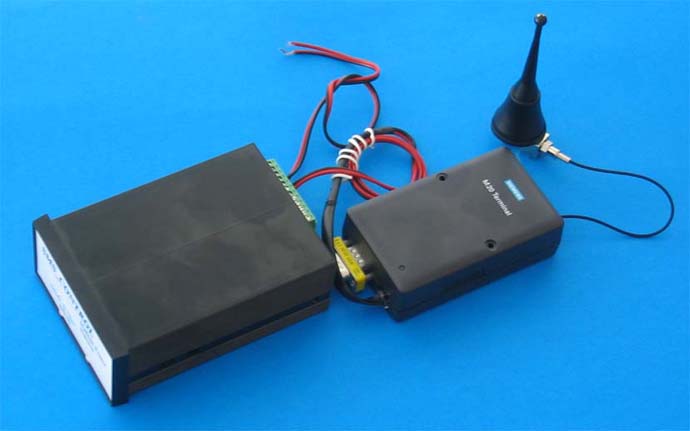

    The board with the MR32 controller is connected (MAX 232) with the GSM MODEM
    over a normal RS232 connection. Only RX, TX and GND is needed.

    The program can save:
    8 different numbers (receivers of SMS)
    8 different sms texts
    into the flash of MR32

    example of a number text:
    "3336541879 mister rossi dig01 sms03"
    If the Input named dig01 is pressed the SMS text nr. 03 will be send
    to the number 3336541879. The name is only optional.

    If the input remains active no other SMS will be send.

    The receiver numbers and the sms texts can be changed over SMS from
    two superusers.

    There is also an administrator number.
    It can change also the numbers of superuser.
    The administrator can not be changed, this number can only be changed in
    the source code.


    The SOURCE CODE
    Compiled with Metroworks C-Compiler

    The source consists of various files
    You can load the S19 file in your controller and test the software

    gsm01.zip
