CPU with 4K Flash The board PROG08 with 68HC908JK3
The D8-BOARD with 68HC908MR32
|
D8-BOARD: the ideal didactic board
to develop programs for 68HC908MR32 An easy way to work with a sophisticated CPU named 68HC908MR32 32K Flash program memory programmer interface included you need only a power supply and a PC |
The board OCTOPUS with 68HC908MR32
Software examples tested with this board
|
OCTOPUS: the ideal board
to develop programs for 68HC908MR32 An easy way to work with a sophisticated CPU named 68HC908MR32 32K Flash program memory |
|
The SQUID interface for ROM MONITOR MODE
connect the SQUID to your PC (RS232) and the other site with the OCTOPUS (RJ11) |
|

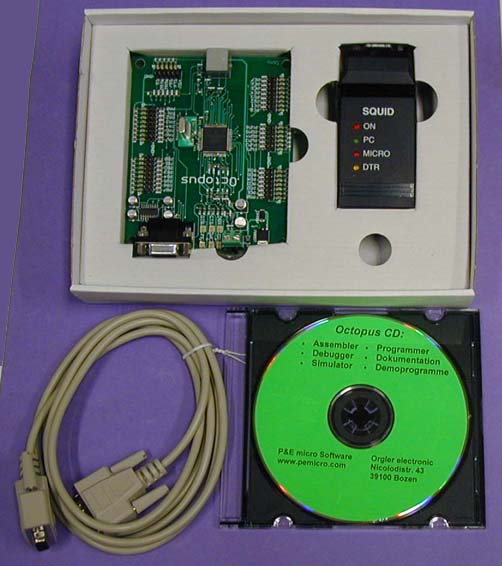

The complete equipment for only 235.- Euro
Hardware, programmer interface and cables Windows IDE-Software Integrated Development Interface with editor, assembler, simulator, debugger You need only a single power supply +7Volt to +12Volt ... and a lot of ideas ! Software examples Port control, real time base, output compare, input capture Six PWM Output, single PWM output, Triac control Stepper control, direct infrarot out with 37 Khz Modem control, GSM-Modem Control |
|
Octopus with GSM Modem M20 Siemens
control all inputs and outputs over GSM Modem software: status machine |
|
Octopus controls nine stepper motors and three lamps
interrupt stepper control triac control: zero crossing detection with input capture triac pulse with output compare |
|
Detailed view of stepper and triac control
|
